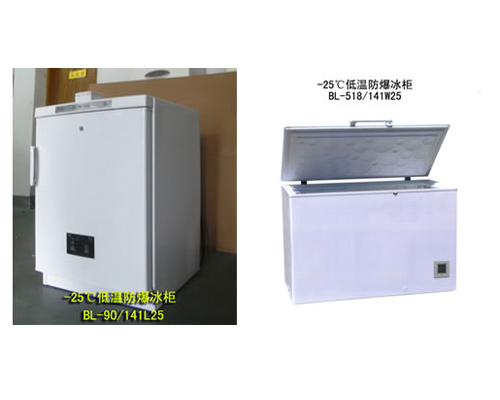

低温防爆冰柜
| 名称 | 立式低温防爆冰柜 | 卧式低温防爆冰柜 | ||||
| 型号规格 | BL-90/141L25 | BL-260/141L25 | BL-518/141W25 | BL-388/141W25 | BL-300/141W25 | BL-200/141W25 |
| 电源(V/Hz) | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 |
| 功率(W) | 85 | 90 | 110 | 108 | 105 | 75 |
| 箱内温度(℃) | -10～-25 | -10～-25 | -10～-25 | -10～-25 | -10～-25 | -10～-25 |
| 噪声(db) | ≤41 | ≤41 | ≤41 | ≤41 | ≤41 | ≤41 |
| 防触电保护类别 | I | I | I | I | I | I |
| 有效容积(L) | 90 | 260 | 518 | 388 | 300 | 200 |
| 外部尺寸(mm) | 597×610×860 | 657×685×1665 | 1650×745×845 | 1240×745×845 | 1055×745×845 | 940×560×845 |
| 内部尺寸(mm) | 435×410×635 | 480×462×1430 | 1524×529×690 | 1114×529×690 | 929×529×690 | 802×387×696 |
| 净重(kg) | 46 | 86 | 76 | 58 | 51 | 38 |
